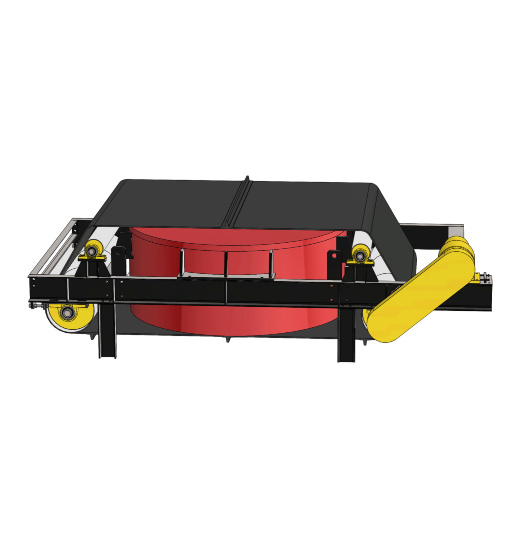

The RCDD series self-unloading electromagnetic separator is an electromagnetic iron removal machine developed by SLon based on years of experience in the research and development of magnetic separation equipment. It adopts new thermally conductive and insulating materials, which has a unique magnetic core structure and magnetic circuit design. It’s suitable for conveying and removing iron in various precious metal, heavy metal, light metal, and rare metal industries, which is recommended for use in harsh environments.
Product Features
- It features a compact structure, easy maintenance, automatic belt alignment, a unique magnetic system, excellent cooling, low temperature rise, low noise, and simple operation;
- It can achieve centralized control and continuous iron suction and removal.
Product Details
Technical Parameters
|
Type |
Cooling Method |
Belt Width (mm) |
Rated Hoisting Height (mm) |
Excitation Power (kw) |
Magnetic Intensity (mt) |
Motor Power (KW) |
Dimensions (mm) |
Weight (kg) |
||||||
|
A |
B |
C |
D |
E |
F |
|||||||||
|
RCDD-5 |
Natural Cooling |
500 |
150 |
≤2 |
≥70 |
1.5 |
2162 |
1108 |
666 |
1324 |
972 |
450 |
935 |
|
|
RCDD-6 |
650 |
200 |
≤3 |
≥70 |
1.5 |
2278 |
1223 |
609 |
1440 |
1087 |
394 |
1017 |
||
|
RCDD-8 |
800 |
250 |
≤4.5 |
≥70 |
2.2 |
2550 |
1310 |
710 |
1400 |
1210 |
500 |
1750 |
||
|
RCDD-10 |
1000 |
300 |
≤5 |
≥70 |
3.0 |
3090 |
1587 |
854 |
1850 |
1350 |
560 |
2162 |
||
|
RCDD-12 |
1200 |
350 |
≤6.5 |
≥70 |
3.0 |
3390 |
1777 |
960 |
1950 |
1550 |
670 |
3045 |
||
|
RCDD-14 |
1400 |
400 |
≤12 |
≥70 |
4.0 |
3500 |
1950 |
1050 |
2000 |
1650 |
760 |
5000 |
||
|
RCDD-16 |
1600 |
450 |
≤14.5 |
≥70 |
5.5 |
3800 |
2260 |
1150 |
2100 |
1850 |
880 |
7600 |
||
|
RCDD-18 |
1800 |
500 |
≤18 |
≥70 |
7.5 |
4400 |
2580 |
1180 |
2150 |
2050 |
1060 |
11000 |
||
|
RCDD-20 |
2000 |
550 |
≤23.5 |
≥70 |
7.5 |
4550 |
2700 |
1200 |
2100 |
2250 |
1200 |
12600 |
||
|
RCDD-T Small and Medium Series |
||||||||||||||
|
RCDD-6
|
T1 |
Natural Cooling |
650 |
200 |
≤4 |
90 |
1.5 |
2300 |
1223 |
609 |
/ |
/ |
/ |
1020 |
|
T2 |
≤7.5 |
120 |
2.2 |
2400 |
1300 |
750 |
/ |
/ |
/ |
2100 |
||||
|
T3 |
≤9.5 |
150 |
2.2 |
2900 |
1300 |
900 |
/ |
/ |
/ |
3200 |
||||
|
RCDD-8
|
T1 |
800 |
250 |
≤7.5 |
90 |
2.2 |
2600 |
1200 |
780 |
/ |
/ |
/ |
2200 |
|
|
T2 |
≤9.5 |
120 |
2.2 |
2860 |
1300 |
900 |
/ |
/ |
/ |
2730 |
||||
|
T3 |
≤14.5 |
150 |
3 |
2900 |
1660 |
1000 |
/ |
/ |
/ |
4100 |
||||
|
RCDD-10
|
T1 |
1000 |
300 |
≤9.5 |
90 |
3 |
3100 |
1500 |
950 |
/ |
/ |
/ |
3150 |
|
|
T2 |
≤14.5 |
120 |
3 |
3100 |
1650 |
1100 |
/ |
/ |
/ |
4200 |
||||
|
T3 |
≤19.5 |
150 |
4 |
3100 |
1660 |
1160 |
/ |
/ |
/ |
5300 |
||||
|
RCDD-12
|
T1 |
1200 |
350 |
≤12 |
90 |
4 |
3300 |
1800 |
1020 |
/ |
/ |
/ |
4500 |
|
|
T2 |
≤17.5 |
120 |
4 |
3300 |
1800 |
1150 |
/ |
/ |
/ |
6600 |
||||
|
T3 |
≤24 |
150 |
5.5 |
3300 |
1800 |
1200 |
/ |
/ |
/ |
8050 |
||||
|
RCDD-14 |
T1 |
1400 |
400 |
≤18.5 |
90 |
4 |
3600 |
2000 |
1100 |
/ |
/ |
/ |
8120 |
|
|
T2 |
≤21 |
120 |
5.5 |
3600 |
2000 |
1300 |
/ |
/ |
/ |
8250 |
||||
|
T3 |
≤35 |
150 |
5.5 |
3600 |
2050 |
1360 |
/ |
/ |
/ |
9800 |
||||
|
RCDD-T Large and Medium Series |
||||||||||||||
|
RCDD-16 |
T1 |
Natural Cooling |
1600 |
450 |
≤20.5 |
90 |
5.5 |
4000 |
2180 |
1200 |
/ |
/ |
/ |
8050 |
|
T2 |
≤28.5 |
120 |
5.5 |
4000 |
2180 |
1350 |
/ |
/ |
/ |
11260 |
||||
|
T3 |
≤42 |
150 |
7.5 |
4000 |
2180 |
1450 |
/ |
/ |
/ |
14800 |
||||
|
RCDD-18 |
T1 |
1800 |
500 |
≤26 |
90 |
7.5 |
4500 |
2510 |
1390 |
/ |
/ |
/ |
13100 |
|
|
T2 |
≤33.5 |
120 |
7.5 |
4500 |
2510 |
1480 |
/ |
/ |
/ |
15600 |
||||
|
T3 |
≤50 |
150 |
11 |
4500 |
2510 |
1560 |
/ |
/ |
/ |
18600 |
||||
|
RCDD-20 |
T1 |
2000 |
550 |
≤30 |
90 |
7.5 |
4900 |
2650 |
1480 |
/ |
/ |
/ |
15000 |
|
|
T2 |
≤39.5 |
120 |
11 |
4900 |
2650 |
1550 |
/ |
/ |
/ |
19000 |
||||
|
T3 |
≤59 |
150 |
11 |
4900 |
2650 |
1660 |
/ |
/ |
/ |
21500 |
||||
|
RCDD-22 |
T1 |
2200 |
600 |
≤34 |
90 |
11 |
5300 |
2800 |
1500 |
/ |
/ |
/ |
18500 |
|
|
T2 |
≤45.5 |
120 |
11 |
5300 |
2800 |
1650 |
/ |
/ |
/ |
21500 |
||||
|
T3 |
≤69 |
150 |
15 |
5300 |
2800 |
1785 |
/ |
/ |
/ |
27100 |
||||
|
RCDD-24 |
T1 |
2400 |
650 |
≤41.5 |
90 |
15 |
5700 |
2900 |
1650 |
/ |
/ |
/ |
21500 |
|
|
T2 |
≤52 |
120 |
15 |
5700 |
2900 |
1780 |
/ |
/ |
/ |
24800 |
||||
|
T3 |
≤35 |
150 |
15 |
5700 |
2900 |
1890 |
/ |
/ |
/ |
31900 |
||||
