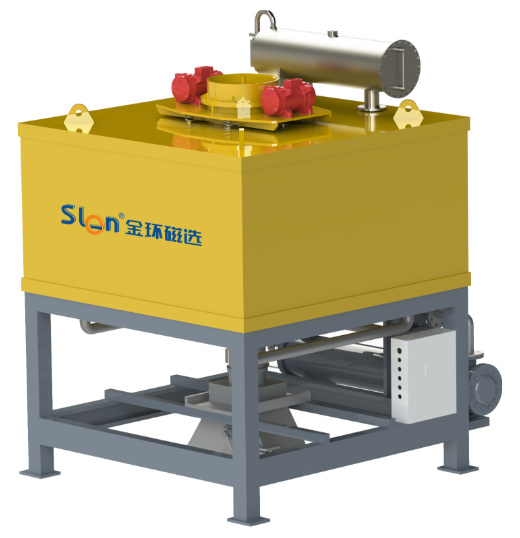

It can efficiently remove impurities such as fine iron powder and weakly magnetic iron oxides from powders. It is not only used for dry iron removal and purification of non-metallic minerals such as quartz, feldspar, nepheline, kaolin, fluorite, and lithium carbonate, but is also widely used in the chemical, plastics, and pharmaceutical industries.
Turn on the power switch to supply power to the excitation coil, and the sorting zone will generate high gradient magnetic field. Start the feeding motor to feed the raw materials. The raw materials pass through the sorting zone. Magnetic particles in the raw materials are captured by the magnetic matrix. Non-magnetic particles pass through the gaps in the magnetic matrix and fall down in the vertical direction of the magnetic matrix and enter the concentrate box for discharge.
|
Model |
Magnetic Intensity(T) |
Diameter (mm) |
Current (A) |
Power (kw) |
Motor (kw) |
Weight (kg) |
Processing Capacity(t/h) |
|
SDGF-250 |
0.4 |
250 |
<75 |
<14 |
0.37*2 |
2000 |
1-3 |
|
0.6 |
<75 |
<26 |
3600 |
||||
|
0.8 |
<120 |
<38 |
6000 |
||||
|
SDGF-430 |
0.4 |
430 |
<125 |
<20 |
0.8*2 |
4500 |
2-6 |
|
0.6 |
<150 |
<38 |
8500 |
||||
|
0.8 |
<210 |
<58 |
14000 |
||||
|
SDGF-600 |
0.4 |
600 |
<130 |
<30 |
1.1*2 |
9500 |
3-12 |
|
0.6 |
<170 |
<52 |
14000 |
||||
|
0.8 |
<235 |
<80 |
20000 |
||||
|
SDGF-800 |
0.4 |
800 |
<120 |
<38 |
2.2*2 |
14500 |
5-18 |
|
0.6 |
<190 |
<72 |
21000 |
||||
|
0.8 |
<260 |
<95 |
30000 |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
