It is suitable for removing iron ore from non-metal mineral and beneficiating weak magnetic minerals with dry method.

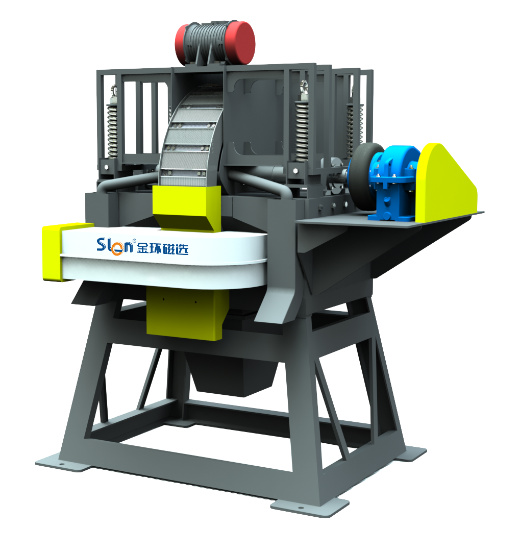

DRY VIBRATORY HIGH GRADIENT MAGNETIC SEPARATOR
Product Features
- Vibrating model for feeder and ring;
- No water needed;
- Shorten the production process, improve the separation efficiency;
- High magnetic field, up to 1.5 Tesla;
- Large range of gradient;
- Simple operation and low production cost.
Product Details
Technical Parameters
Model Parameter |
SLon-D1000 |
Ring diameter(mm) |
1000 |
Ring speed (r/min) |
0~3 |
Feed size(-200mesh %) |
30~100 |
Capacity(t/h) |
2~3 |
Rated magnetic intensity (T) |
1.0 |
Rated energizing current (A) |
650 |
Rated energizing voltage(V) |
26.5 |
Rated energizing power(Kw) |
17 |
Ring motor power(Kw) |
1.1 |
Ring vibrating motor power(Kw) |
1.5 |
Feed vibrating motor power(Kw) |
0.18 |
Ring vibrating amplitude (mm) |
2~4 |
Machine weight(t) |
7.6 |
Dimension(length*width*height, mm) |
1910×2320×2708 |
