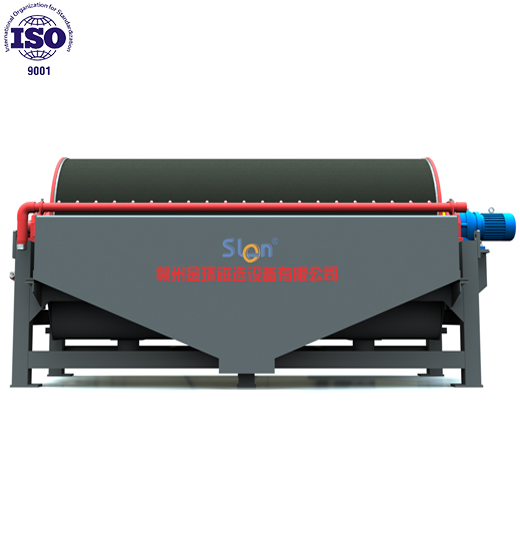

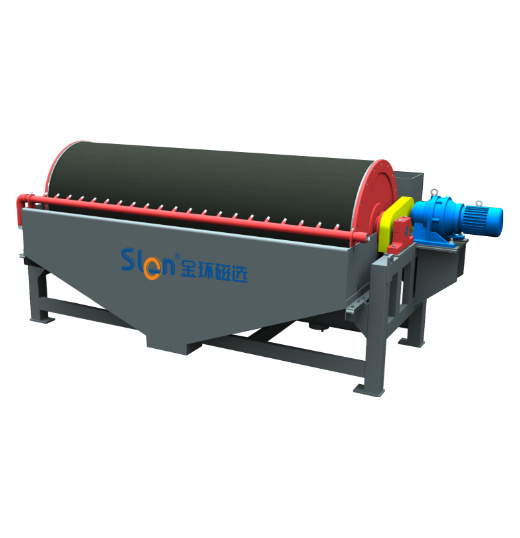

WET DRUM MAGNETIC SEPARATOR(LIMS)
WET DRUM MAGNETIC SEPARATOR(LIMS)
WET DRUM MAGNETIC SEPARATOR(LIMS)
Product Description:

Wet drum magnetic separator aka low intensity magnetic separator(LIMS) is widely used in mines and coal separating factories  to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials.

SLon LIMS is suitable for processing magnetite,pyrrhotite, magnetite, titanium magnetite, calcined ore and other materials, as well as the iron removal and purification of feldspar, quartz sand, kaolin and other non-metallic minerals.





Contact Consult
Product Features
  • Reliable magnetic material, made of high magnetic remanence and high coercivity magnetic materials, which has very good anti-demagnetization ability, and the demagnetization does not exceed 5% in eight years;
  • Slon applied a unique and reliable fixing scheme to ensure the magnetic group will never fall off and be damaged;
  • Duckbill shape flushing hose, has strong adaptability to water quality and large water pressure, can effectively saving water of 50%;
  • Optional protection material, such as:wear-resistant rubber, stainless steel and wear-resistant ceramics.
Product Details
How does it work?

Slon offers the following 3 different types tank LIMS:
CTB series semi-countercurrent LIMS;

CTB series is designed for handling minerals with particle sizes from 0.6-6mm, It is the first option before WHIMS to separate the magnetite mineral from those weak magnetic mineral.

CTS series co-current LIMS;

CTS series is designed for handling minerals with particle sizes from 0-6mm,it is specially used for pre-selection of coarse material,such as river sand, sea sand etc. And it is also suitable for recovering of magnetic heavy media.

CTN series counter current LIMS;

CTN series is designed for handling minerals with particle sizes from 0-0.5mm, especially for mineral with particle size from 0-0.15mm, it is generally used as a cleaner.

Technical Parameters

Type

      Diameter

/mm



      Length        /mm

Speed

(r/min)

Feed density

 /%

 Ore throughput

(t/h)



Slurry throughput

  (m3/h)

Power /Kw

Weight

/t

SCT-44  (Lab)

400

400

20～50

20～30

0.05～0.5

0.15～2.5

0.55

0.40

SCTB/S/N-66

600







600

36

20～30

5～10

15～20

1.5

0.80

SCTB/S/N-69

900

36

20～30

8～15

18～35

1.5

1.00

SCTB/S/N-612

1200

36

20～30

10～20

35～55

2.2

1.25

SCTB/S/N-618

1800

36

20～30

15～30

40～65

3

1.80

SCTB/S/N-712

700



1200

36

20～30

15～25

40～65

3

1.80

SCTB/S/N-718

1800

36

20～30

18～35

60～100

3

2.20

SCTB/S/N-918

900



1800

26

25～35

20～45

70～120

4

2.70

SCTB/S/N-924

2400

26

25～35

30～55

120～190

5.5

3.60

SCTB/S/N-1018

1050







1800

21

25～35

45～60

110～160

4

3.40

SCTB/S/N-1021

2100

21

25～35

50～70

140～200

5.5

4.10

SCTB/S/N-1024

2400

21

25～35

55～80

170～230

5.5

4.80

SCTB/S/N-1030

3000

21

25～35

65～100

240～400

7.5

6.20

SCTB/S/N-1218

1200









1800

17

25～35

60～75

160～250

4

4.70

SCTB/S/N-1224

2400

17

25～35

70～110

220～380

5.5

5.70

SCTB/S/N-1230

3000

17

25～35

80～140

260～460

7.5

6.70

SCTB/S/N-1236

3600

17

25～35

100～160

280～540

7.5

7.70

SCTB/S/N-1245

4500

17

25～35

130～190

360～640

15

11.00

SCTB/S/N-1530

1500



3000

15

25～40

100-180

290-480

11

10.00

SCTB/S/N-1545

4500

15

25～40

180-240

400-650

18.5

15.00
