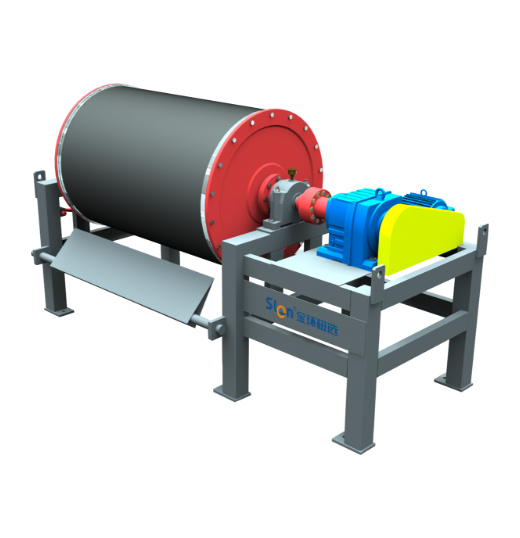

PULLEY SEPARATOR
Product Description:

Pulley Magnetic Separator are widely used as head pulleys in belt conveyors for continuous automatic removal iron materials from a variety of materials. It is suitable for waste recovery, mining, recycling application, cement, coal handing plant, refractory for remove iron material or recovery iron material.

Product Features
  • High magnetic induction intensity;
  • Deep magnetic field action;
  • Stable and reliable magnetic system.
Product Details
How does it work?

Ferrous materials pass through the pulley’s magnetic field, and the iron is attracted and held to the belt until it reaches the underside, passes out of the magnetic field, and is separately discharged. The cleaned, nonmagnetic material is discharged over the pulley in a normal trajectory. A splitter assembly is required to separate segmented material fractions. An adjustable splitter will permit separation fine tuning and provide optimum separation performance for your application.

Technical Parameters

Type

Diameter/mm

Length/mm

Max Surface field/mT

SGTD-0506

500 600 450

SGTD-0507

500 750 450

SGTD-0509

500 950 450

SGTD-0606

600 600 450

SGTD-0607

600

70 450

SGTD-0609

600 1150 450

SGTD-611

600 950 450
