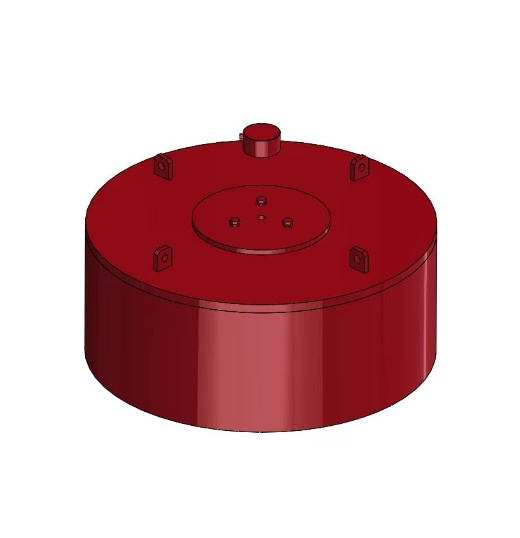

RCDB Disc Type Electromagnetic Iron Remover

Product Description:

RCDB Disc Type Electromagnetic Iron Remover is a type of electromagnetic iron removal equipment developed by SLon based on our years of experience in developing magnetic separation equipment. It uses new thermally conductive and insulating materials and has a unique magnetic core structure and magnetic circuit design. It’s suitable for conveying and removing iron from various precious, heavy, light, and rare metal industries, which is ideal for harsh environments.

Contact Consult

Product Features

It features fully enclosed, fully filled, self-cooling, moisture-proof, pollution-resistant, durable, lightweight, excellent insulation, fast heat dissipation, strong suction, and a high iron removal rate;
It can be automated and program-controlled, ensuring stable and reliable operation.

Product Details

How does it work?

When energized, the electromagnet generates a strong, uniform magnetic field that penetrates the material layer passing beneath it. Ferrous particles are attracted upward from the bulk material and held against the bottom face of the separator. Since the RCDB is a manual-clean design, the captured ferrous material remains attached to the magnet surface until the system is de-energized for periodic cleaning.

Technical Parameters

Type		Cooling Method	Belt Width (mm)	Rated Hoisting Height (mm)	Excitation Power (kw)	Magnetic Intensity (mt)	Dimensions (mm)				Weight (kg)
Type		Cooling Method	Belt Width (mm)	Rated Hoisting Height (mm)	Excitation Power (kw)	Magnetic Intensity (mt)	A	C	D	F	Weight (kg)
RCDB-5		Natural Cooling	500	150	≤2	≥70	854	455	600	420	545
RCDB-6			650	200	≤3	≥70	970	390	660	355	610
RCDB-8			800	250	≤4	≥70	1000	560	660	515	1080
RCDB-10			1000	300	≤5	≥70	1200	570	900	525	1410
RCDB-12			1200	350	≤6.5	≥70	1400	680	900	635	2090
RCDB-14			1400	400	≤12	≥70	1500	810	1200	790	3060
RCDB-16			1600	450	≤14.5	≥70	1600	930	1300	885	4400
RCDB-18			1800	500	≤18	≥70	1980	1000	1680	985	5400
RCDB-20			2000	550	≤31.5	≥70	2160	1010	1900	1000	6650
RCDB-T Medium and Small Series
RCDB-6	T1	Natural Cooling	650	200	≤5	90	1000	560	/	/	1080
	T2				≤7.5	120	1200	570	/	/	1410
	T3				≤9.5	150	1400	680	/	/	2090
RCDB-8	T1		800	250	≤7.5	90	1200	570	/	/	1410
	T2				≤9.5	120	1400	680	/	/	2090
	T3				≤14.5	150	1600	800	/	/	3300
RCDB-10	T1		1000	300	≤9.5	90	1400	680	/	/	2090
	T2				≤14.5	120	1600	800	/	/	3300
	T3				≤17.5	150	1800	1000	/	/	5250
RCDB-12	T1		1200	350	≤12	90	1500	810	/	/	3060
	T2				≤17.5	120	1800	1000	/	/	5250
	T3				≤24	150	2000	1100	/	/	6900
RCDB-14	T1		1400	400	≤18.5	90	1700	990	/	/	4300
	T2				≤21	120	2050	1000	/	/	6500
	T3				≤35	150	2200	1120	/	/	8650
RCDB-16	T1		1600	450	≤20.5	90	1850	1000	/	/	5260
	T2				≤28.5	120	2200	1150	/	/	8650
	T3				≤42	150	2310	1200	/	/	12300
RCDB-18	T1		1800	500	≤26	90	2100	1150	/	/	6980
	T2				≤33.5	120	2190	1300	/	/	9750
	T3				≤50	150	2450	1330	/	/	15200
RCDB-20	T1		2000	550	≤30	90	2300	1250	/	/	9050
	T2				≤39.5	120	2360	1360	/	/	15000
	T3				≤59	150	2400	1500	/	/	19100
